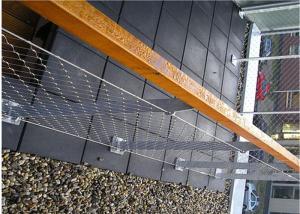

Customized balistrade safety netting with stainless steel rope cable ferrule mesh 2.5 mm
For balconies and galleries inside and outside, modern balustrade solutions that fit into the overall picture of the building unobtrusively and offer an unlimited view as well as a good falling protection are questioned.
1. Specification as follows:
Material: ss304 ss316
Mesh type: 1.Woven 2. Ferrule mesh
CableStructure:7x7 and 7x19
CableDiameter:1/8", 3/32", 1/16", and 3/64".
Mesh Size:1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"
Height: general 0.5-30meter or customized.
Length: general 0.5-30meter or customized.
Shape: There are irregular shape, triangle parallelogram trapezoid etc.
2. cable structures and mesh type:
1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
2. Specification List:
| Flexible Stainless Steel Wire Rope Mesh(Ferrule Type) |
| Item No.s | Cable Diameter | Mesh Opening Size (W×H) | Normal Break |
| | inch | mm | inch | mm | ibs. |
| YT-3212W | 1/8 | 3.2 | 4.75×4.75 | 120×120 | 1,600 |
| YT-3210W | 1/8 | 3.2 | 4×4 | 102×102 | 1,600 |
| YT-3290W | 1/8 | 3.2 | 3.55×3.55 | 90×90 | 1,600 |
| YT-3276W | 1/8 | 3.2 | 3×3 | 76×76 | 1,600 |
| YT-3250W | 1/8 | 3.2 | 2×2 | 51×51 | 1,600 |
| YT-2410W | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
| YT-2490W | 3/32 | 2.4 | 3.55×3.55 | 90×90 | 920 |
| YT-2476W | 3/32 | 2.4 | 3×3 | 76×76 | 920 |
| YT-2460W | 3/32 | 2.4 | 2.4×2.4 | 60×60 | 920 |
| YT-2450W | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| YT-2076W | 5/64 | 2.0 | 3×3 | 76×76 | 676 |
| YT-2060W | 5/64 | 2.0 | 2.4×2.4 | 60×60 | 676 |
| YT-2050W | 5/64 | 2.0 | 2 | 51×51 | 676 |
| YT-2038W | 5/64 | 2.0 | 1-1/2×1-1/2 | 38×38 | 676 |
| YT-1676W | 1/16 | 1.6 | 3×3 | 76×76 | 480 |
| YT-1650W | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
| YT-1638W | 1/16 | 1.6 | 1-1/2×1-1/2 | 38×38 | 480 |
| YT-1630W | 1/16 | 1.6 | 1.2×1.2 | 30×30 | 480 |
| YT-1625W | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
| YT-1238W | 3/64 | 1.2 | 1-1/2×1-1/2 | 38×38 | 270 |
| YT-1230W | 3/64 | 1.2 | 1.2×1.2 | 30×30 | 270 |
| YT-1225W | 3/64 | 1.2 | 1×1 | 25.4×25.4 | 270 |
| YT-1220W | 3/64 | 1.2 | 4/5×4/5 | 20×20 | 270 |
The stainless steel cable mesh,especially the ferrule type mesh,are more used in fields like balustrades on bridges and staircases,large barrier fences,and building facade trellis systems.As an emerging product one architectural decoration and protection,stainless steel rope mesh has provided the modern architectural decoration and horticulture engineering with a new and stylish element,which is getting more and more appreciated by designers and clients over the world.
4.Application:
It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
5. Advantage:
1. The netting is clipped to the cable,
2. The mesh size and diameter can be modified
3. It can be made to customer orders and statically tested especially suitable for facades
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110, 000 PSI)
7. This product can bear the heavy snow and the gale very much.
8. Without toxic material, safety, environmental protection.
6. Accessory:
7. Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
