Zoo Specific Ecological 7 X 7 Ss Rope Mesh Tiger Enclosure Hand Woven

Name: Zoo Specific Ecological 7 X 7 Ss Rope Mesh Tiger Enclosure Hand Woven
Brand: Yuntong
Price: 1 USD

Wholesale Zoo Specific Ecological 7 X 7 Ss Rope Mesh Tiger Enclosure Hand Woven from china suppliers

Brand Name : Yuntong

Model Number : YT--F-F

Certification : CE , SGS

Place of Origin : Hebei

MOQ : 10 Sqm

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 300Sqm/Week

Delivery Time : 5-8 Work Days

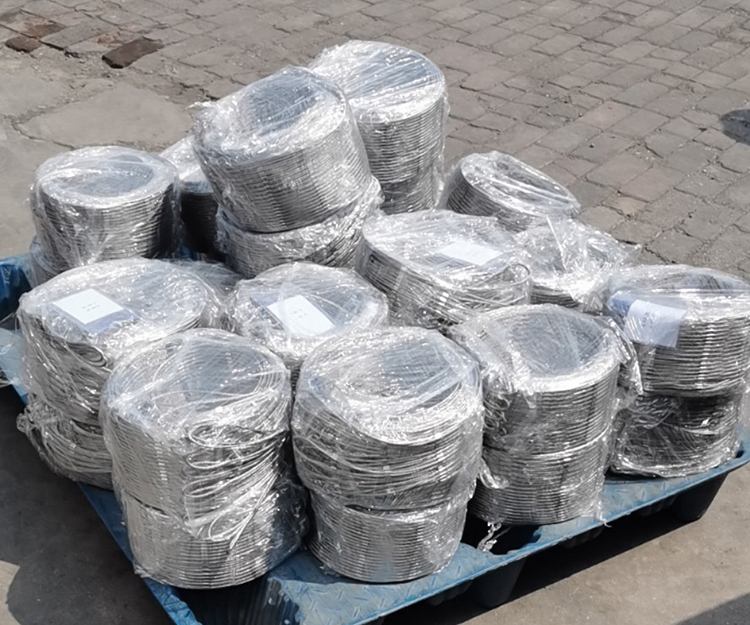

Packaging Details : Package film for each piece,Several pieces packed in 1 carton

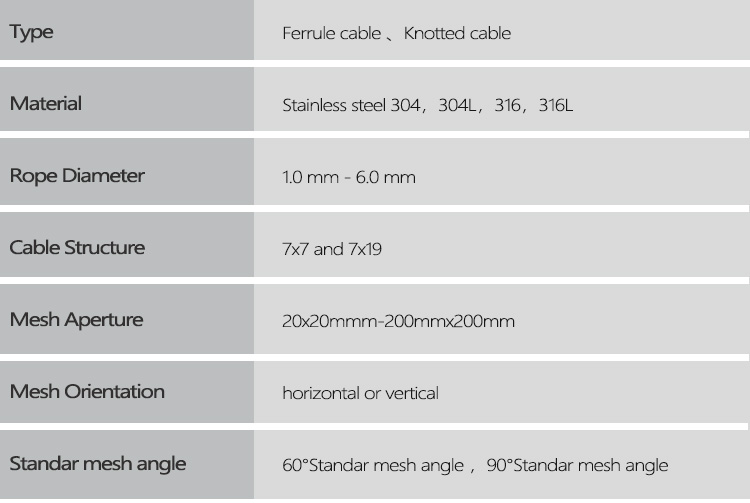

Material : Stainless Steel 304 , 316 , 316L

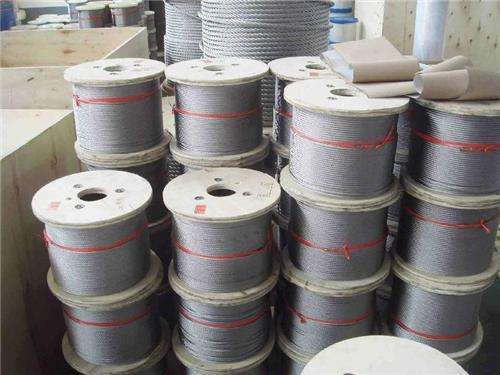

Wire Rope : 1.2 mm to 4.0 mm

Rope Constructions : 7 x 7 , 7 x 19 , 1 x 19

Finished : Ultrasonic Bath / Black Oxide

Mesh Orientation : Horizontal , Vertical

Product Name : Inox X-tend Cable Mesh Webnet

Mesh Shape : Rhombus , Diamond

Application : Staircase Security , Balustrade Infill , Railing Safety

Panel Size : Customized in width and length

Mesh Angle : 60 degree

Mesh Style : X-tend in Ferruled Type

Contact Now

zoo-specific ecological mesh/Tiger enclosure mesh/hand-woven stainless steel rope mesh

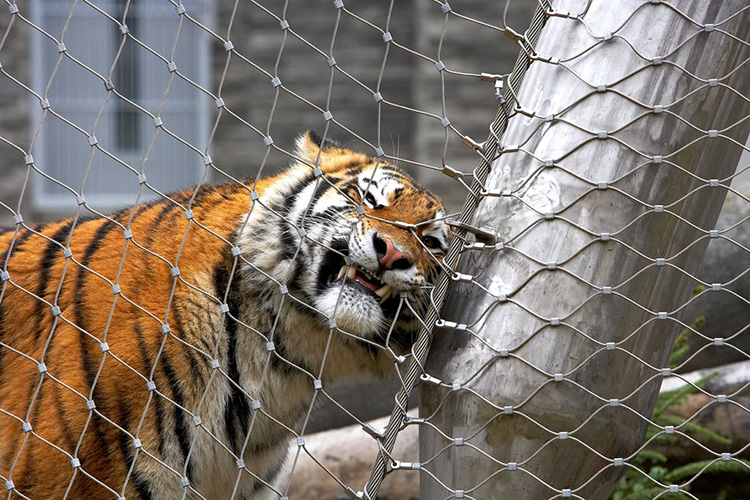

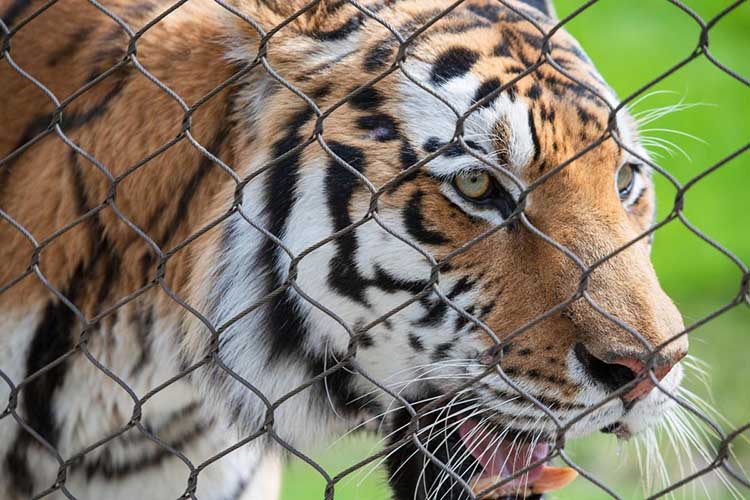

Stainless steel wire rope mesh forpredatory animals enclosures, safety-certified & highly durable , application to tiger fences
mesh, tiger enclosure mesh, using 304/316 stainless steel cables, hand-woven, widely used in the zoo fence, zoo enclosure
protection.The wire rope is smooth, protecting the fur from being damaged.

The following is the common various protection schemes and specifications for kinds tiger cage fence.Rope diameter, material and mesh aperture size can all be customized. We will produce according to your requirements. The wire rope is smooth, protecting the fur from being damaged. We provide the regular specifications for your reference.
Rope Diameter		Mesh aperture		Normal Break
inch	mm	inch	mm	Ibs.
3/32"	2.4	2" x 2"	51x51	920
3/32"	2.4	2.4" x 2.4"	60x60	920
3/32"	2.4	3" x 3"	76x76	920
1/8	3.2	2" x 2"	51x51	1,600
1/8	3.2	2.4" x 2.4"	60x60	1,600
1/8	3.2	3" x 3"	76x76	1,600
1/8	3.2	3.6" x 3.6"	90x90	1,600

Zoo Specific Ecological 7 X 7 Ss Rope Mesh Tiger Enclosure Hand Woven

Details Images

The application of these two types of cable mesh nets is very similar, and can be used as the zoo fence mesh, aviary mesh, safety net, and railing net.

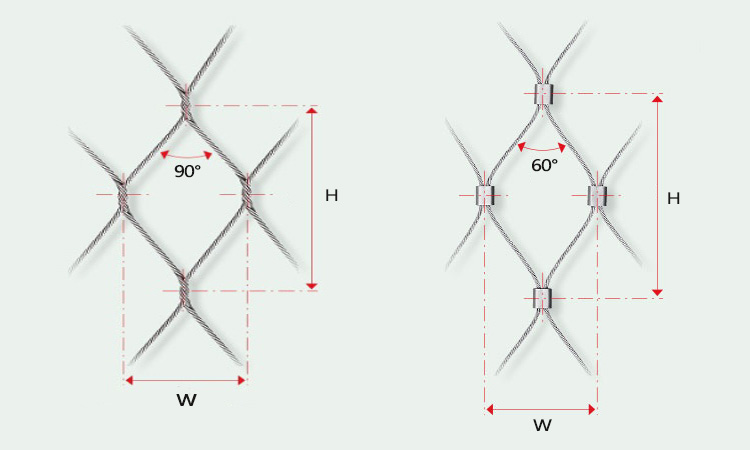

Stainless steel wire rope mesh is including two types:

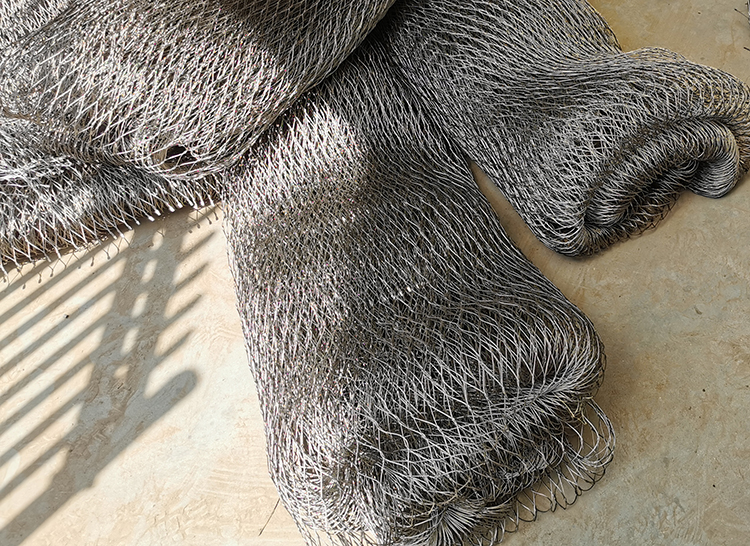

1> Stainless steel cable woven mesh(stainless steel sleeveless wire rope mesh)
2>Stainless steel cable ferrule mesh(stainless steel sleeved wire rope mesh)

Stainless steel cable woven mesh

(stainless steel sleeveless wire rope mesh)

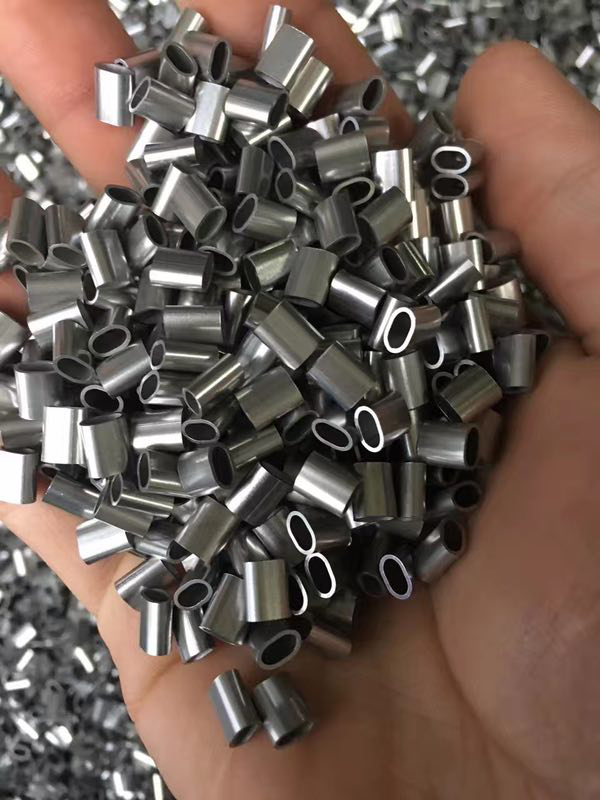

Stainless steel cable ferrule mesh

(stainless steel sleeved wire rope mesh)

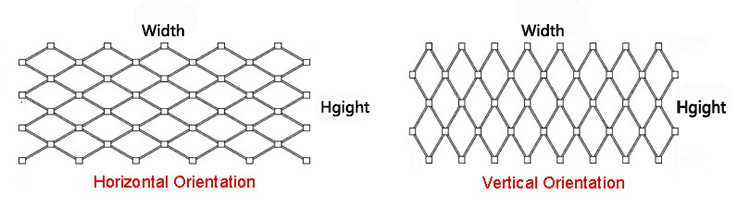

▼Mesh Orientation

Note: Panel height and width asked inside frame dimension.

Product Application

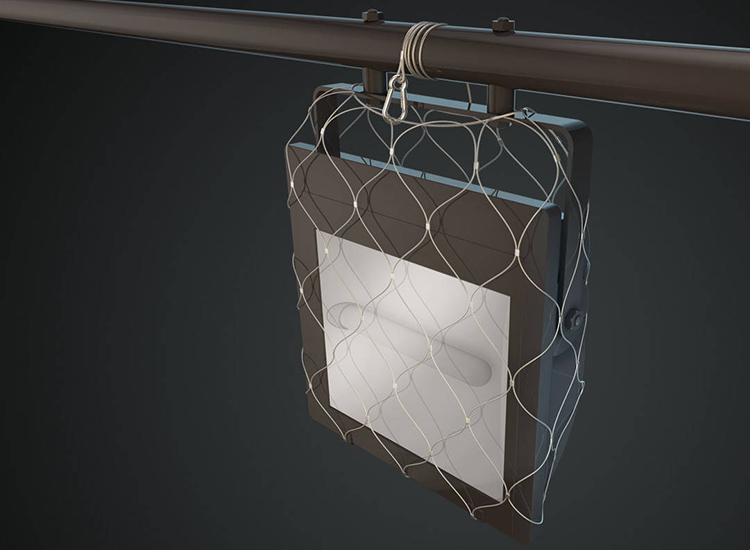

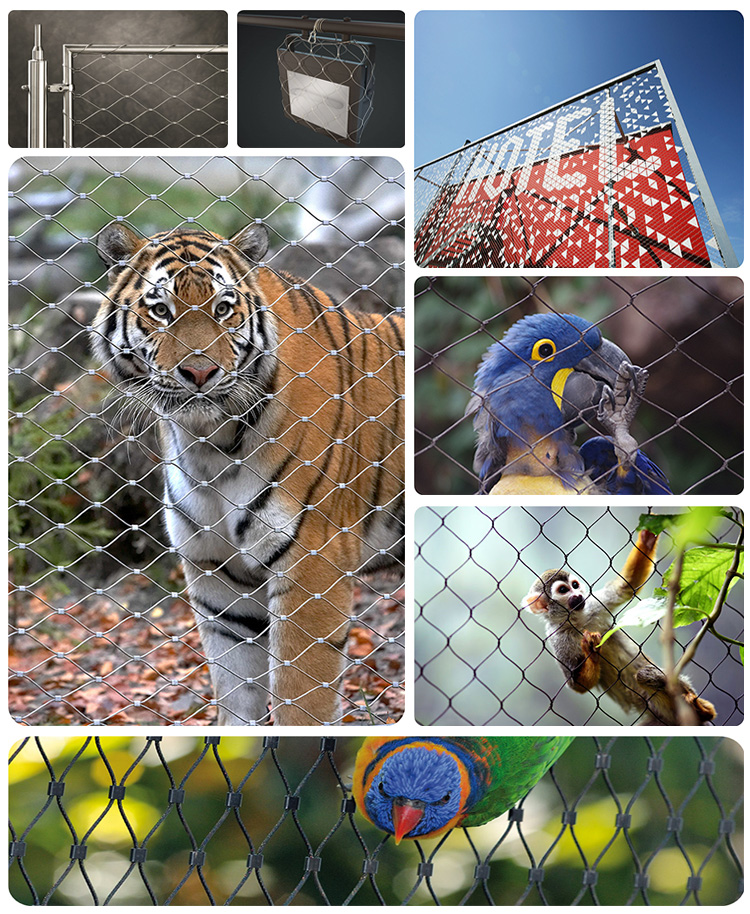

In combination with architectural ropes mesh is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, façade greening, artwork, ball nets, stair wells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.
